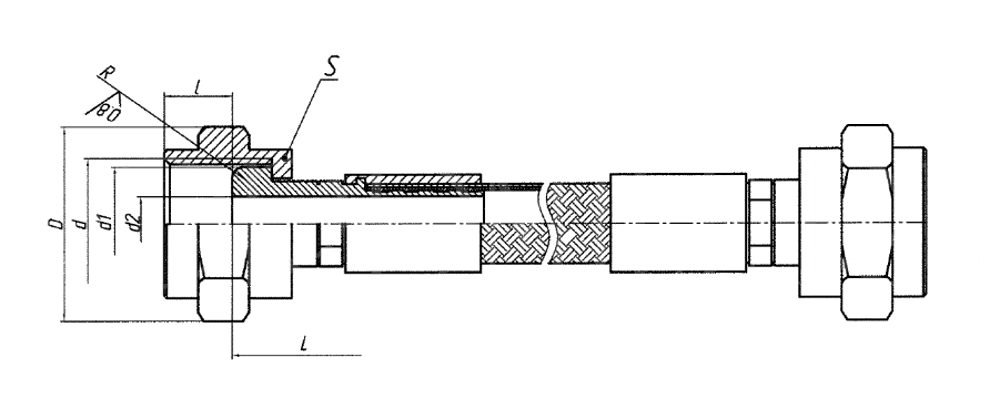

Сфера
Обозначение | Размеры, мм | Давление МПа (кгс/см²) |
|||||||
| Ду | D | d | d1 | d2 | I | S | R | ||
| АТМ.048.6-280/8Д0.447.048-8 | 6 | 21.9 | М14*1,5 | 10 | 4.3 | 3 | 19 | 10 | 28 (280) |
| АТМ.048.8-280/8Д0.447.048-10 | 8 | 25.4 | М16*1,5 | 12 | 5.8 | 4 | 22 | 10 | 28 (280) |
| АТМ.048.10-280/8Д0.447.048-12 | 10 | 27.7 | М18*1,5 | 14 | 7.8 | 4 | 24 | 10 | 28 (280) |
| АТМ.048.12-280/8Д0.447.048-14 | 12 | 31.2 | М20*1,5 | 16 | 9.8 | 4 | 27 | 10 | 28 (280) |
| АТМ.048.14-280/8Д0.447.048-16 | 14 | 34.6 | М22*1,5 | 17 | 11.8 | 4 | 30 | 10 | 28 (280) |
| АТМ.048.16-280/8Д0.447.048-18 | 16 | 34.6 | М24*1,5 | 20 | 13.8 | 4 | 30 | 10 | 28 (280) |
| АТМ.048.18-280/8Д0.447.048-20 | 18 | 36.9 | М27*1,5 | 22 | 15.7 | 4.5 | 32 | 16 | 28 (280) |
| АТМ.048.20-280/8Д0.447.048-22 | 20 | 41.6 | М30*1,5 | 24.4 | 17.7 | 3.5 | 36 | 16 | 28 (280) |
| АТМ.048.22-280/8Д0.447.048-25 | 22 | 47.4 | М33*1,5 | 27.4 | 19.7 | 3.5 | 41 | 16 | 28 (280) |
| АТМ.048.25-280/8Д0.447.048-28 | 25 | 47.4 | М36*1,5 | 30.4 | 22.7 | 3.5 | 41 | 16 | 28 (280) |
Обозначение | Размеры, мм | Давление МПа (кгс/см²) |
|||||||
| Ду | D | d | d1 | d2 | I | S | R | ||
| АТМ.058.6-100/8Д0.447.058-8 | 6 | 21.9 | М14*1,5 | 10 | 4.3 | 3 | 19 | 10 | 10 (100) |
| АТМ.058.8-100/8Д0.447.058-10 | 8 | 25.4 | М16*1,5 | 12 | 5.8 | 4 | 22 | 10 | 10 (100) |
| АТМ.058.10-100/8Д0.447.058-12 | 10 | 27.7 | М18*1,5 | 14 | 7.8 | 4 | 24 | 10 | 10 (100) |
| АТМ.058.12-100/8Д0.447.058-14 | 12 | 31.2 | М20*1,5 | 16 | 9.8 | 4 | 27 | 10 | 10 (100) |
| АТМ.058.14-100/8Д0.447.058-16 | 14 | 34.6 | М22*1,5 | 18 | 11.8 | 4 | 30 | 10 | 10 (100) |
| АТМ.058.16-100/8Д0.447.058-18 | 16 | 34.6 | М24*1,5 | 20 | 13.8 | 4.5 | 30 | 10 | 10 (100) |
| АТМ.058.18-100/8Д0.447.058-20 | 18 | 36.9 | М27*1,5 | 22 | 15.7 | 4.5 | 32 | 16 | 10 (100) |
| АТМ.058.20-100/8Д0.447.058-22 | 20 | 41.6 | М30*1,5 | 24.4 | 17.7 | 3.5 | 36 | 16 | 10 (100) |
| АТМ.058.22-100/8Д0.447.058-25 | 22 | 47.4 | М33*1,5 | 27.4 | 19.7 | 3.5 | 41 | 16 | 10 (100) |
| АТМ.058.25-100/8Д0.447.058-28 | 25 | 47.4 | М36*1,5 | 30.4 | 22.7 | 3.5 | 41 | 16 | 10 (100) |
Обозначение | Размеры, мм | Давление МПа (кгс/см²) |
|||||||
| Ду | D | d | d1 | d2 | I | S | R | ||
| ATM.069.8/8Д0.447.069-8 | 6 | 21.9 | М14*1,5 | 11 | - | 5 | 19 | 10 | 28 (280) |
| ATM.069.10/8Д0.447.069-10 | 8 | 25.4 | М16*1,5 | 12 | 5.8 | 4 | 22 | 10 | 28 (280) |
| ATM.069.12/8Д0.447.069-12 | 10 | 27.7 | М18*1,5 | 14 | 7.8 | 4 | 24 | 10 | 28 (280) |
| ATM.069.14/8Д0.447.069-14 | 12 | 31.2 | М20*1,5 | 16 | 9.8 | 4 | 27 | 10 | 28 (280) |
| ATM.069.18/8Д0.447.069-18 | 14 | 34.6 | М22*1,5 | 17 | 11.8 | 4 | 30 | 10 | 28 (280) |
| ATM.069.20/8Д0.447.069-20 | 16 | 34.6 | М24*1,5 | 20 | 13.8 | 4 | 30 | 10 | 28 (280) |
Обозначение | Размеры, мм | Давление МПа (кгс/см²) |
|||||||
| Ду | D | d | d1 | d2 | I | S | R | ||
| ATM.070.10/8Д0.447.070-10 | 8 | 25.4 | М16*1,5 | 12 | 5.8 | 4 | 22 | 10 | 28 (280) |
| ATM.070.12/8Д0.447.070-12 | 10 | 27.7 | М18*1,5 | 14 | 7.8 | 4 | 24 | 10 | 28 (280) |
| ATM.070.18/8Д0.447.070-18 | 14 | 34.6 | М22*1,5 | 17 | 11.8 | 4 | 30 | 10 | 28 (280) |
